Piano

Narrow linewidth. Precisely tunable.

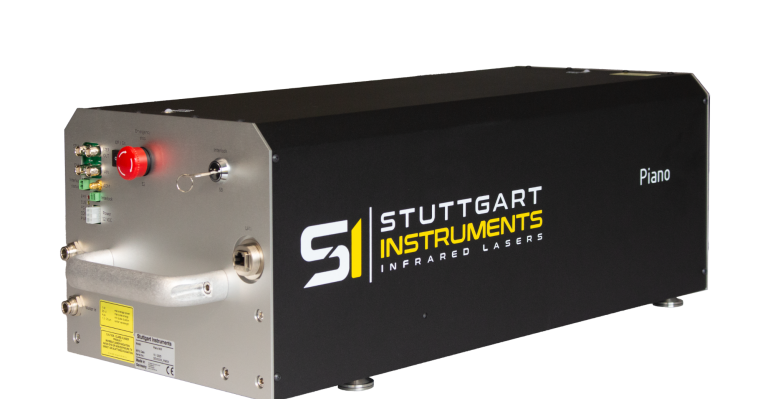

The Stuttgart Instruments Piano is a highly precise infrared light source tailored for applications in precision spectroscopy and microscopy. It is characterized by its outstanding spectral accuracy and unprecedented reproducibility, packaged in a compact design, including the pump laser.


Piano

Specifications

Piano

Piano spectral range

Typical performance of the Piano.

Piano Piano MIR
Pulse duration 5 - 10 ps
Linewidth (FWHM) 4 cm-1 2 - 4 cm-1
Repetition rate 50 MHz
Tunability 1.4 - 4.5 µm 1.4 - 18 µm
Average power

400 mW at 1.5 µm

150 mW at 3 µm

10 mW at 5 µm

5 mW at 10 µm

Performance

Piano performance
The Piano shows very precise tunability and extreme stability (<0.02 cm-1/h) along with ultra-low relative intensity noise (<-160 dBc/Hz).

Modulation

The Piano is equipped with a high speed optical modulator. All outputs are modulated through a single input signal. The system comes with a fully integrated modulation architecture including a precision electronic oscillator and full software support.

Alpha modulator plot
Modulation frequency 1 kHz to 3 MHz (adjustable)
Frequency resolution < 1 Hz
Modulation depth 0 to 100% (adjustable)
Duty cycle 0 to 100% (adjustable)

Applications

  • (s)SNOM microscopy and imaging
  • AFM Photothermal spectroscopy
  • Photoacoustic spectroscopy
  • Trace gas sensing
  • Quantum dot excitation
  • Entangled photon pair generation
